Item

Parameters

Machine Name

RTB-60-K -type valve sealing surface dedicated CNC machine tools

Processing range

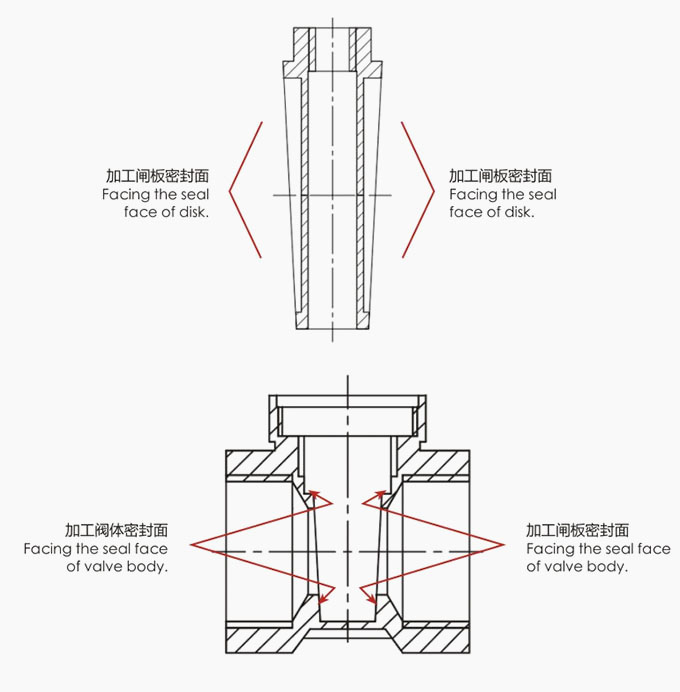

DN50 ~ DN150 stainless steel, bronze valve body sealing surface of the valve plate processing

Power head count

Two power head

Processed materials

Stainless steel, bronze

Capacity

30 ~ 60s/pcs

Spindle speed

360 ~ 1400rpm

Spindle travel

Z to

≤ 300mm

X to

≤ 30mm

Control system

Wide number 928TEa CNC systems

Fixture Type

Hydraulic

Motor configuration

Servo motor

Spindle motor drive mode < / TD>

Inverter drive

Power

-Phase AC380V/50HZ;

Total power

5.5kw

Dimensions

2600mm × 1700mm × 1900mm

Weight

3200kg
